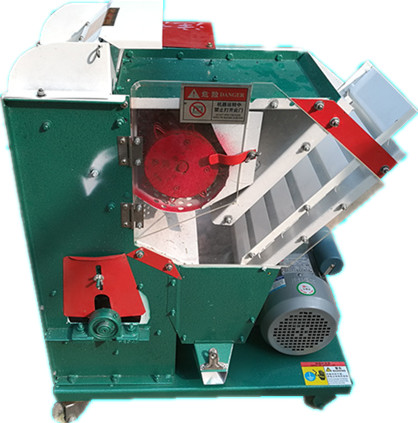

    DR-3 Experimental Paddy Thresher

    【Features】:Main performanceof DR-3 Experimental Paddy Thresher: 1. No broken rate and low loss rate. 2. High paddy threshing rate. 3. Low cost.

    E-mail:ugoodmach@gmail.com

    Brief Introduction:

    DR-3 Experimental Paddy Thresher is used in experimental paddy threshing.

    1. Main technical specification of DR-3 Experimental Paddy Thresher:
    Power: motor 1500W, 220V, 1400 turns/minute
    Overall size: 700×500×930mm
    Whole weight: 65kg
    Feeding method: manual semi-feeding
    Cleaning method: mechanical cleaning with a little manual work assisted
    Operators: 2
    Drum rotation speed: 980 turns/minute (paddy)
    Threshing outlet clearance: 3-5mm
    Blower revolving speed: 1600 turns/minute

    2. Main performance index of DR-3 Experimental Paddy Thresher:
    The performance index is listed as follows when the paddy kernels water content is 18-23%:
    1. Residual kernels: 0
    2. Machine cleaning time: 3-5 seconds
    3. Broken rate: ≤0.3%
    4. Total loss rate: ≤2%
    5. Impurity rate: ≤1% (after selecting)
    6. Production efficiency: ≈200 plants/hour


    Features:

    Main performance index of DR-3 Experimental Paddy Thresher:
    The performance index is listed as follows when the paddy kernels water content is 18-23%:
    1. Residual kernels: 0
    2. Machine cleaning time: 3-5 seconds
    3. Broken rate: ≤0.3%
    4. Total loss rate: ≤2%
    5. Impurity rate: ≤1% (after selecting)
    6. Production efficiency: ≈200 plants/hour


    Technical Parameters:

    Main technical specification of DR-3 Experimental Paddy Thresher:
    Power: motor 1500W, 220V, 1400 turns/minute
    Overall size: 700×500×930mm
    Whole weight: 65kg
    Feeding method: manual semi-feeding
    Cleaning method: mechanical cleaning with a little manual work assisted
    Operators: 2
    Drum rotation speed: 980 turns/minute (paddy)
    Threshing outlet clearance: 3-5mm
    Blower revolving speed: 1600 turns/minute

    Any change of technical parameters, there is no further notice.
